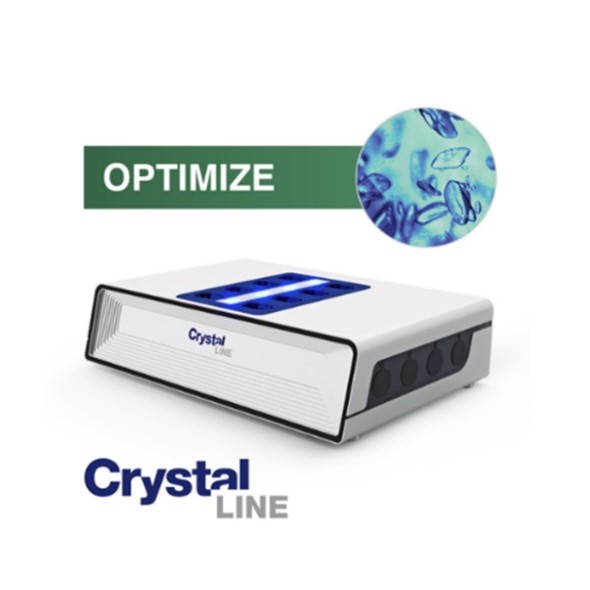

Crystalline

Crystalline PV/RR comes with a full suite of in-vial analytical functions including turbidity detection, particle imaging and Raman spectroscopy, featuring simple setup and operation.Boasting an ergonomic layout and effortless handling, it removes all entry barriers that previously confined such analytical technologies to expert users only.

Consulting

021-62088010

Update time:2026-05-19

Current location : HomeProductsCrystallization and Chemical Synthesis System > Crystalline > Crystalline

Overview
Features
Application
Instruments

Overview

In-line analysis without reactor cleaning and AI-powered image analysis deliver valuable insights to every chemist far faster than ever before. The Crystalline PV/RR features in-vial analytical capabilities including turbidity measurement, particle imaging and Raman spectroscopy, with simple setup and operation.

Its ergonomic design and user-friendly operation break down all barriers associated with technologies that once required specialist expertise. Intuitive controls paired with AI-driven software analysis allow all users to classify crystal morphology into distinct shape categories and generate 3D reconstructions of crystals. Particle overlapping interference is completely eliminated. No probe insertion into reaction vessels is needed, effectively preventing cross-contamination.

The Crystalline PV/RR integrates temperature and turbidity measurement with real-time particle imaging. Equipped with eight high-quality in-line digital visualization probes delivering a pixel resolution of up to 0.63 μm, it has never been easier to monitor the inside of sample vials. There are no moving parts or bulky insertion probes required. The probes feature a robust, sealed, pre-aligned and stable design, enabling users to operate eight parallel particle observation cameras directly.

Visualization of the entire crystallization or formulation process
Real-time acquisition of particle size and morphology information at the finest scale

Features

AI-Powered Image Analysis

AI-driven software analysis delivers enhanced image processing and research capabilities.

Next-Generation Hardware Engineering

6.0× magnification with a pixel resolution of 0.63 μm
Improved temperature accuracy, precise control and superior thermal stability
Robot-compatible design for automated robotic integration

Advanced Analytical Functions

Digital particle viewer, real-time Raman spectroscopy, particle size distribution (PSD), turbidity measurement
Effortless evaluation of crystal growth rate, particle size and morphology

application field
