Overview

Speed up your product development

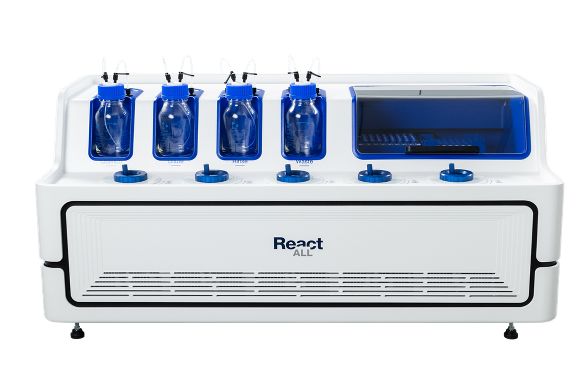

ReactALL is an innovative benchtop multi-reactor system with novel automated sampling and overhead stirring for medium-throughput experimentation. This cutting-edge device is specifically designed to address the needs of chemical reaction screening and optimization - route scouting as well as process development and optimization. It fills the gap between high-throughput screening and larger laboratory reactors by providing high-quality, data-rich experimentation with low material needs at medium-throughput. Heterogeneous reactions are well accommodated by the sampling mechanism which representatively captures solids, the stirring mechanism which suspends but does not grind solids, and the integrated cameras which see and profile particle sizes and shapes. This is all achieved in standard vials with 5-10 mL working volume through Technobis’ SmartCap™ technology.

Features

Five independently controlled reactors with 5-10 mL working volumes
Integrated automated sampling, quench, and dilution directly into HPLC vials with up to 18 samples per reactor
Sample heterogeneous reactions with representative sampling of the solid and liquid components without piercing reactor septa
Overhead stirring with novel helical stirrers designed with the aid of CFD to evenly suspend solids without grinding
Uses standard vials with SmartCaps™ with novel sampling and stirrer mechanisms
Integrated color cameras to see and profile particle sizes, shapes and turbidity within the reactors
Open API - ready for robotics integration
High-quality, data-rich experimentation with higher throughput and lower material needs
